Panel 7 segments
Panel of electronic control- Precision of 0.1%. Easy to read in various lighting conditions. Simple programming of setpoints and other parameters. Modbus RS485 interface.

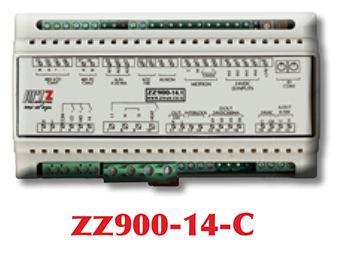

Humidistat Control Unit
The Control Unit receives data from the Humidity sensor, processes the data , and returns commands to the Atomizers. It displays data on a Panel Display and allows input of user-defined parameters. The controller also supplies data constantly to the RS 485 Modbus line for connection to a PC.
User-defined settings include RH levels, time cycles for sensitivity control, and a timer override.
Data reported includes current RH level (xx.x%) and temperature. User-defined settings, and electrical and communication malfunctions are also reported.
Multiple Control Units can be linked in series to a PC and operated as a network with any HMI program.
